Technical Specifications

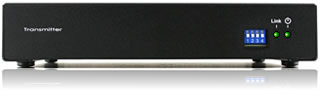

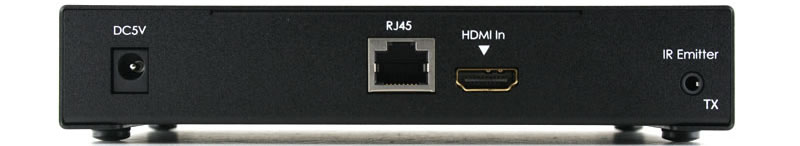

Transmitter
Video Parameters
- Video Formats: 1080p, 720p
- Data Rate: 2.25 Gbps
- Clock Rate: 225 MHz
Miscellaneous
- Requires Gigabit IP switches for extension or distribution/splitting
- Connector Types: 1 x HDMI Type A (female), 1 x RJ-45
- Dimensions (inches, HxWxD): 1.25 x 6.35 x 4.5
- Product Weight: TBD
- Shipping Weight: TBD
- Agency Approvals: TBD
- DC Input Connector:
- DC Input Voltage/Polarity: 12V/Center Positive
- Max DC Input Current: 2.5A

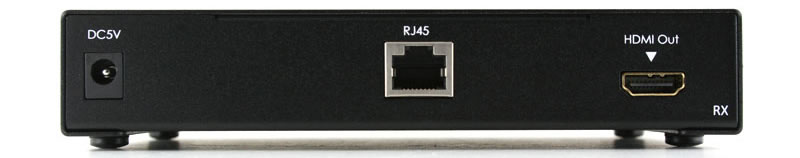

Receiver
Audio Parameters
- Formats supported: 2-channel PCM
- Min Load Impedance: 75 ohms/10K Ω ohms
- Multi-channel Digital: Converts multi-channel signals to 2-channel PCM for maximum compatibility
In the Box
